pressSIGN Scoring System for QC Color

pressSIGN is a Scoring System software that helps control the print process accurately and consistently on all types of printing machines – offset, gravure, flexo, screen and digital. It analyzes color measurement data to provide print set-up guidance based on international standards (such as ISO 12647, ISO 15339, GRACoL G7, Japan Color, SWOP) or user-defined standards.

PressSIGN Benefits

PressSIGN introduces a more efficient and objective way of validating color based on data

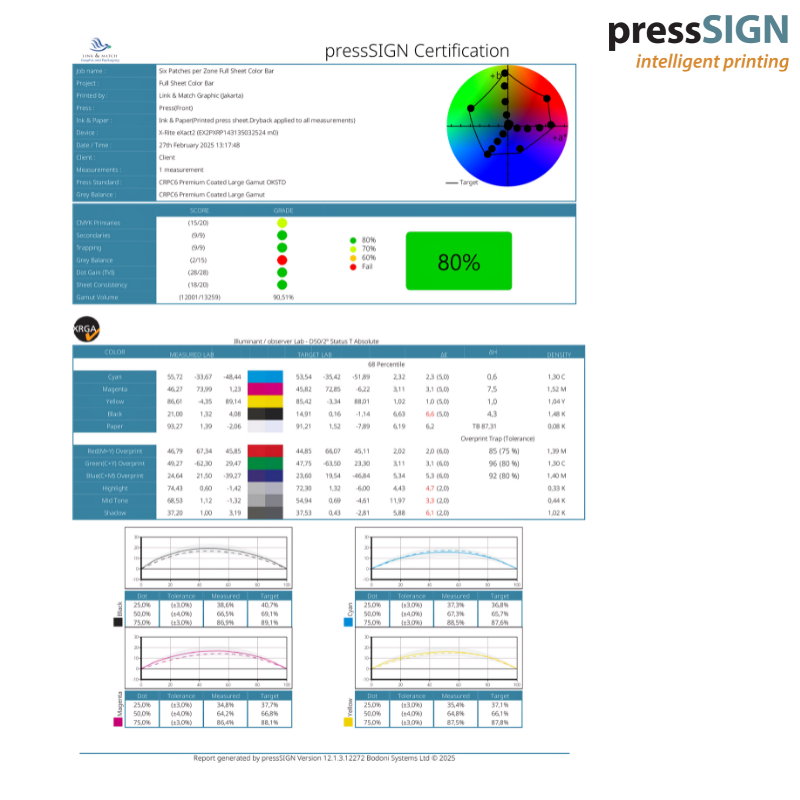

PressSIGN provides measurement reports for analysis
PressSIGN can simplify the color matching process
PressSIGN can easily validate printed colors against international or internal target standards
Improve print color quality and consistency across all presses
Reduce make-ready time, waste and downtime due to color issues
Increase productivity and efficiency of the print process
Aids communication between print buyers and printers with a shareable system of standards and tolerances

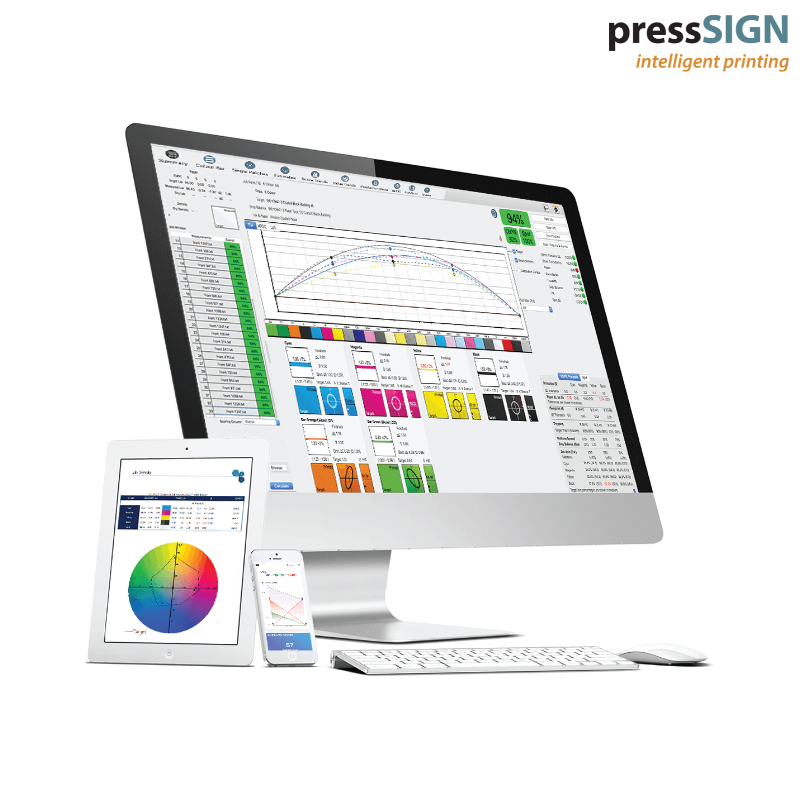

Operators can easily understand and set ink density through an intuitive interface
PrePress can directly export tonal curves to workflow or RIP efficiently without manual input
Production managers can analyze production performance based on detailed reports

Features of pressSIGN

Dynamic Density Adjustment (DDA):
- Helps operators achieve the lowest Delta E from just one solid color patch
- Dynamically adjusts to print conditions (paper type, ink, temperature, humidity, etc)
Dry Back Compensation:
- Corrects color shift after the ink dries or after processes such as lamination
Dot Gain / Tone Curve Export:
- Supports export of 3 types of tonal curves: TVI (dot gain), 4CX (4 Color Exchange), and NPDC (Neutral Print Density Curve)
4CX Technology:
- Correct gray balance using ICC profile data, especially useful for digital printing
Spot Colour Libraries:
- Includes PANTONE® color library and allows users to create custom color libraries
- Can monitor up to 12 spot colors in one job, in addition to CMYK
Soft Proofing:
- Visually display the comparison between the printout and the target standard before printing
- Can simulate the effects of tonal curve changes
Analisa & Laporan Produksi:
- The reports of job, make-ready, measurement time, and machine/operator performance can be read in the form of graphs, tables, pie charts, and can be exported to spreadsheets or APIs
